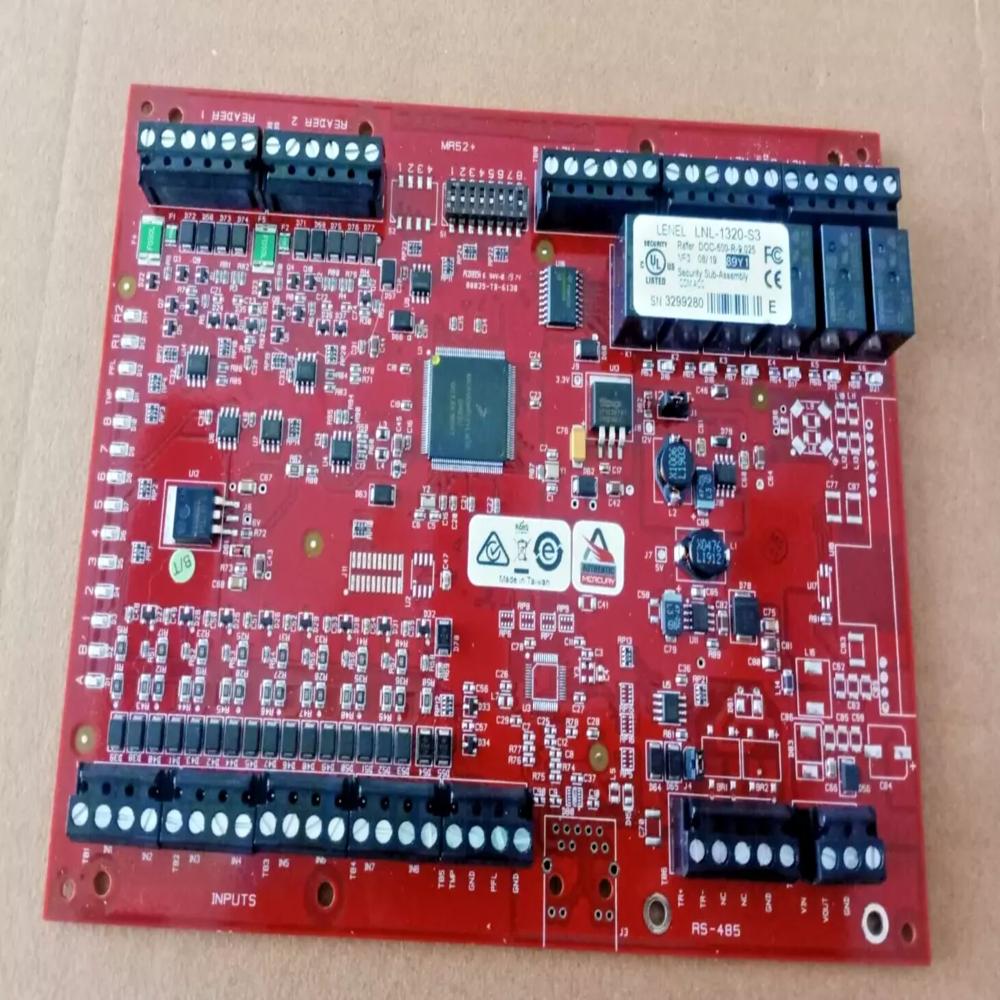

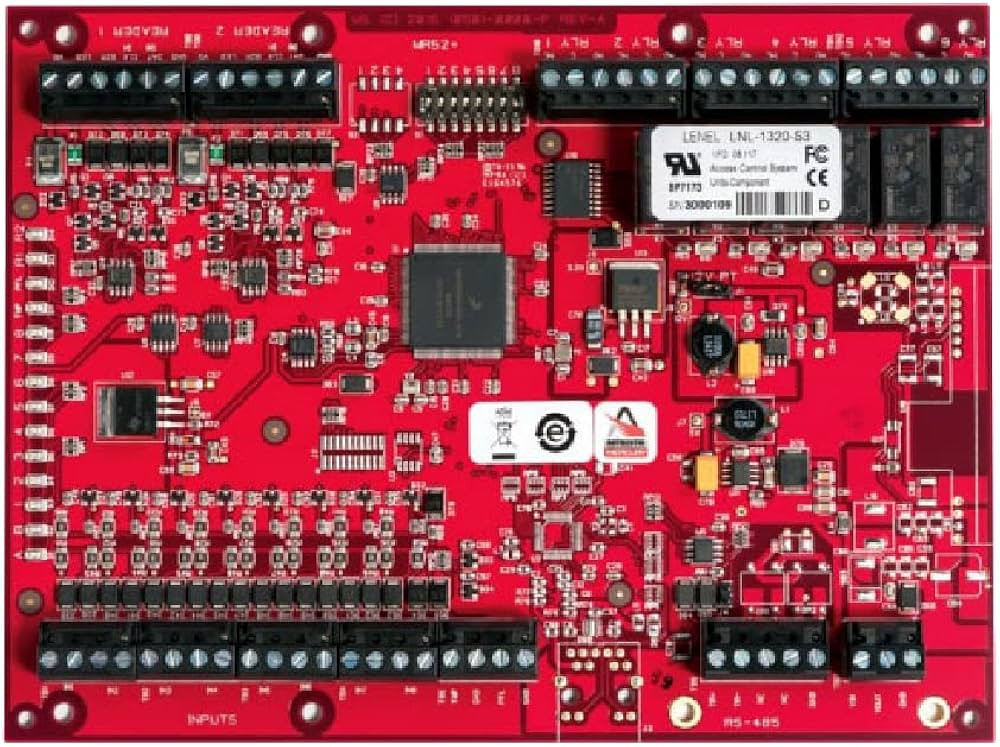

Intelligent Dual Reader Controller LNL-1320 Series 3

Name: Enclose with power supply
Brand: GMT SECURITY AND AUTOMATION INDIA PRIVATE LIMITED
Price: 1850.0 INR
Availability: InStock

Price 18500.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Intelligent Dual Reader Controller LNL-1320 Series 3 Specification

Weight
50 Grams (g)

Sensor Type
RS-485

Usage
Security

Communication Interface
OSDP

Temperature Range
85 Celsius (oC)

Color
White

Frequency
125 Kilohertz ( KHZ )

Material
PVC

Dimension (L*W*H)
6x8x1 Inch (in)

Warranty
1 Year

Alarm
No

Input Power
12 Volt (V)

Product Type
Intelligent Dual Reader Controller

Intelligent Dual Reader Controller LNL-1320 Series 3 Trade Information

Minimum Order Quantity
10 Units

Supply Ability
5000 Units Per Month

Delivery Time
1 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
BOX

Main Domestic Market
All India

Certifications
YES

About Intelligent Dual Reader Controller LNL-1320 Series 3

Lenel offers a Dual Reader Interface (DRI) module for access
control solutions. Most access control card readers, keypads,
or readers with keypads that use standard Wiegand Data1/
Data0 or Clock/Data communication are supported, as are
those that support the bidirectional RS-485 Open Supervised
Device Protocol (OSDP). Lock, unlock, and facility code offline
access modes are supported on all readers connected to the
DRI. Each DRI supports up to 16 different card formats as well
as issue codes for both magnetic and Wiegand card formats.
The DRI provides a vital link between the Intelligent System
Controller (ISC) and the card reader attached to the interface.
As many as 32 DRI modules can be multidropped using RS-
485 2-wire or 4-wire communication up to 4,000 feet per port
away from the ISC. Each DRI module is individually addressed
for increased reporting capabilities with OnGuard access
control software applications. The DRI includes eight inputs
that support normally open, normally closed, supervised, and
non-supervised circuits. In addition, six output relays support

fail-safe or fail-secure operation.

Features & Functionality
12 or 24 VDC power supply
Supports Data1/Data0, Clock/Data, Supervised and Unsupervised
F2F and OSDP-compatible RS-485 readers and keypads
Supports Open Supervised Device Protocol (OSDP) readers, including
biometric template transfer and Secure Channel encryption
Downloadable firmware
Six Form-C 5 A at 28 VDC relay outputs
Up to 16 different formats
Issue code support for magnetic and Wiegand formats
Door contact supervision (open/closed)
REX push-button monitor
Strike control output
Bicolor reader status LED support and 2-wire LED support
Beeper control
Dedicated tamper and power failure circuits
Support for offline reader access mode
On-board jumpers for termination
On-board regulator allows 12 VDC reader support from 24 VDC
power source
DIP switch-selectable addressing
Advanced Encryption Standard (AES) 128-bit or 256-bit
encryption supported, depending on ISC and OnGuard version
Supports Schlage Handkey template download
Compatible with current and previous versions of OnGuard
Extended Functionality
Connect FIPS-201 readers for embedded authentication (when
used with LNL-4420 and appropriate HID and OnGuard
software and licenses)
