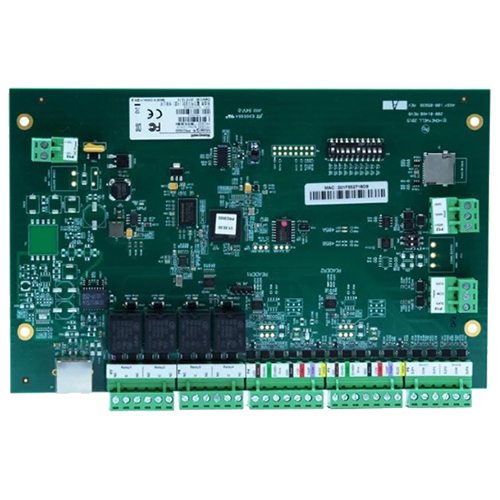

Honeywell PRO3000 Access Control

Product Description

The PRO3000 IP-enabled controller is an advanced access control
panel capable of providing solutions for medium to large applications.
The PRO3000 provides power and flexibility with its 32-bit CPU
architecture, TCP/IP protocol support, flash memory for firmware and
large local card holder database.
The PRO3000 is designed to operate off-line, making access control
decisions independently from a PC or other controlling device. It can
also be connected to a host computer for system configuration, alarm
monitoring and direct control. Connectivity to the host computer is
accomplished via TCP/IP network connection.
The PRO3000 combines intelligent controller and reader interface into
one complete unit. It connects for two readers via Wiegand controlling
two doors. The controller can support up to 62 doors via RS485 multi-
drop communication where 30 downstream controllers are connected to
the gateway controller. This architecture can reduce the usage on LANs
by using only one TCP/IP address to 62 doors.
The PRO3000 accommodates a card database of 100,000 cards, and a
transaction buffer of 100,000 transactions.
The PRO3000 is designed with tile mounting configuration.
